Induction Solutions for Foundries

Induction Solutions for Foundries

Box type Crucible in Aluminium Frame
  • Rugged design with top and bottom made out of high strength castables refractory and baked in oven.
  • Easy coil access and most economical maintenance.
  • Body made of Rolled Aluminium sheet which gives better life in comparison to Aluminium casted plates.
  • Highest efficiency due to low losses.
  • Easy to Install
  • Suitable for small & medium foundries for melting of ferrous and non ferrous material.
Small furnace for Precious Metals & Lab
  • We offer very small furnaces of capacity 2kg to 20kg for gold, silver, nonferrous and ferrous metals, Very easy to install

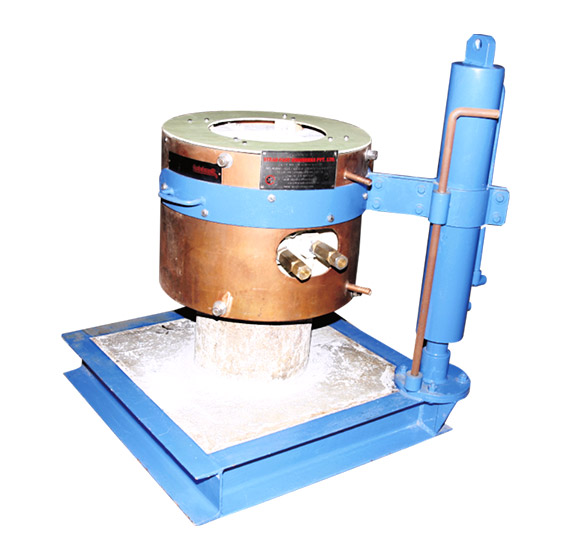

Lift & Swing Crucibles
  • Lift Swing induction furnaces crucibles are very much suitable for non ferrous material casters.
  • Furnace can be installed on floor without any foundation and it
  • Induction coil assembly can be move easily with the help of hydraulic cylinder between two crucibles
  • No lining is required as we use moveable graphite Crucibles
KW RatingMelt RateVotage (v)
Steel @1650 CIron @1480 C Copper @1200 CAluminium @650 C
50707511077415
75115130167120415
100150170225166415
150235250335250415
250400450555440550
350625675855615550
4508258751125803550
5008759251265892550
7501400150019501350550
10001830200026001800550
12002200245032432425550
